Discover a powerful portable material analysis solution with this handheld X-ray fluorescence analyzer designed for fast, accurate, and non-destructive elemental testing. Combining advanced XRF technology with a compact handheld design, this analyzer delivers reliable results for metal identification, alloy verification, mining exploration, soil analysis, and industrial inspection.
🔬 Fast & Precise XRF Elemental Analysis
Uses advanced X-ray fluorescence technology to quickly identify and analyze elemental composition without damaging samples, providing accurate results for various materials.
⚙️ High-Performance SDD Detector System
Equipped with a silicon drift detector delivering reliable analytical performance and fast measurement speeds for transition metals and heavy metal analysis.
🪨 Wide Range of Industrial Applications

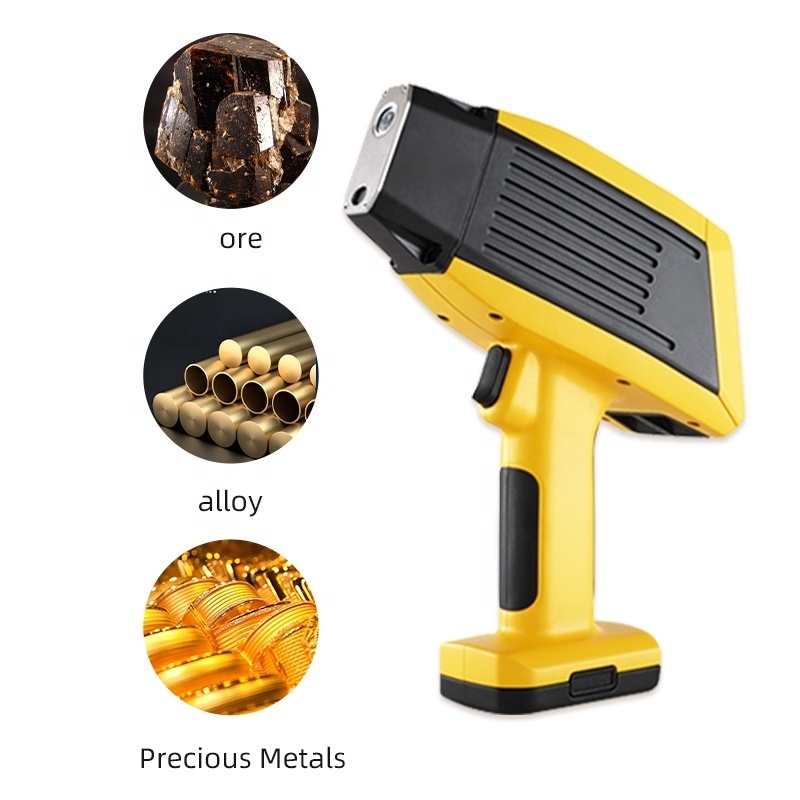

Suitable for alloy identification, mining exploration, soil testing, precious metal analysis, and industrial material verification.
📷 Integrated Camera Documentation System
Features built-in high-resolution cameras for sample viewing, image documentation, and barcode reading, improving traceability and workflow efficiency.
📱 Smart Touchscreen & Wireless Connectivity
Equipped with a color touchscreen interface and supports Wi-Fi, Bluetooth, and USB connectivity for convenient data transfer and reporting.
🔋 Rechargeable Portable Design
Powered by a rechargeable lithium-ion battery with hot-swap capability, allowing flexible operation in laboratories, workshops, and outdoor environments.
🛡️ Durable Professional Construction
Designed for demanding field environments with optimized internal components, protective detector technology, and reliable long-term performance.
Product Name: Handheld XRF Element Analyzer
Technology: X-Ray Fluorescence (XRF) Analysis
Detector Type: 7 mm² Silicon Drift Detector (SDD)
Detector Resolution: 170 eV FWHM at 5.95 Mn K-alpha line
X-Ray Tube: 40 kV Rh Anode (Alloy Applications) / 50 kV Anode (Mining, Soil and Other Applications)
Excitation Source: 4 W X-Ray Tube
Weight: 3.1 lbs (Approx. 1.4 kg) with Battery
Dimensions: 238 × 283 × 84 mm
Display: 3.5-inch Color Capacitive Touchscreen
Processor: 1.2 GHz Quad-Core ARM Cortex A53
Memory: 2 GB LP-DDR3 RAM + 16 GB eMMC Storage
Power Supply: Rechargeable Li-ion Battery
Battery Feature: Hot-Swap Capability (Maximum 60 Seconds)
Connectivity: Wi-Fi, Bluetooth, USB
Operating Temperature: 10°F to 130°F
Calibration: Fundamental Parameters Calibration
Security: Password Protected User and Administrator Settings
Certifications: CE, RoHS, USFDA Registered, Canada RED Act
Perfect For: Metal Testing, Alloy Identification, Mining Exploration, Soil Analysis, Quality Control, and Industrial Inspection

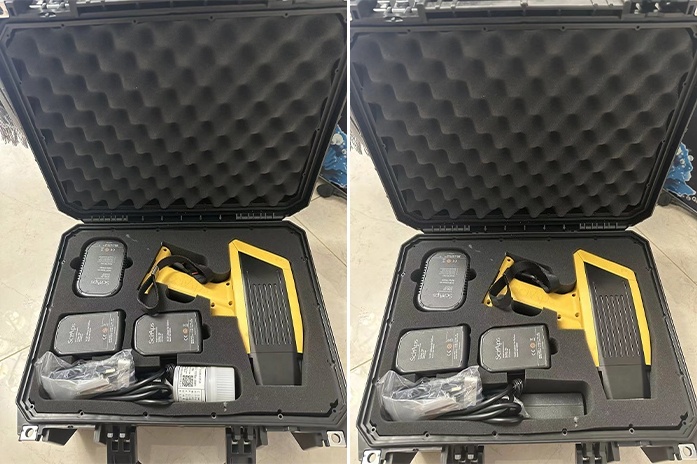

📦 1 × Handheld XRF Analyzer
📦 1 × Rechargeable Battery System
📦 1 × Charging Equipment
📦 1 × Calibration Standard
📦 1 × User Documentation
✨ Perform faster, smarter, and more reliable material analysis with a professional handheld XRF analyzer designed for accurate results in the field and laboratory environments!
